Product Overview
PUR and PIR panels is frequently used for external cladding or facades and Buildings, Insulation and signage.
High speed of construction, low-cost, and trouble-free operation are the major advantages
These are mainly used for external and internal Partitions/ Architectural claddings, false ceiling, Signage, Machine coverings, container construction cubicle etc…
Raadex Shelters Pvt ltd Follows Quality management as per Indian standard organization ISO 9001-2015
Product Description
Both PUR & PIR have same chemical composition, raw material stabilizer and activator, but they differ on Fire resistant properties. PIR chemicals disintegrate at 3000°C & PUR at 2000°C and hence PIR Board retain the Properties for a long period during fire hazard.
PIR & PUR Insulated Panels have a low thermal conductivity Co-efficient value of K 0.022 W/m k.(Watts per meter - Kelvin Degrees )
Lower the K value, is lower the heat flow through the product.
We Offer
I. Cold Room / Chill room / Clean Room Panel
II. Puf Partition Panels / Side wall cladding
III. Freezer Room Panels
IV. Floor Insulation Panels
The Standard ACP core is Polyether (PE) Polyurethane (PU)
Sandwich panels consist of a core of Insulting material sandwiched between two layers of metal, usually steel or Aluminum bonded under pressure.
Insulating material may be combustible (Burn Easily) or non –combustible.
The chemicals required for PUF panels are Injected in appropriate ratio in between the Raadex profile sheets. These panels are pressed firmly in order to make the foam to spread uniformly to get air bubble free PUF panel.
As Per Company Green initiative, RAADEX ensures that all foaming agents are environment friendly
and
CFC Free.
In Our Quality tests are conducted and evaluated at each stage
-> Foam density
-> Metal sheet strength
Thickness and Quality and Quantity check so Raadex check to give good quality and quantity.
Size of Panels
Our Raadex Roof / Wall panels size /thickness are as given below.
Roof - 35,50,80,100 mm/1090 width
Wall - 35,50,80,100 mm /1145 mm width
The foam of overall density of 40(+/-2) kg/m3
Tensile Strength :150-250 kpa
Compression Strength:150-210 kpa
Shear Strength:100-240 kpa
Fire Property: B3 as Per DIN 4102(B2& PIR upon request)

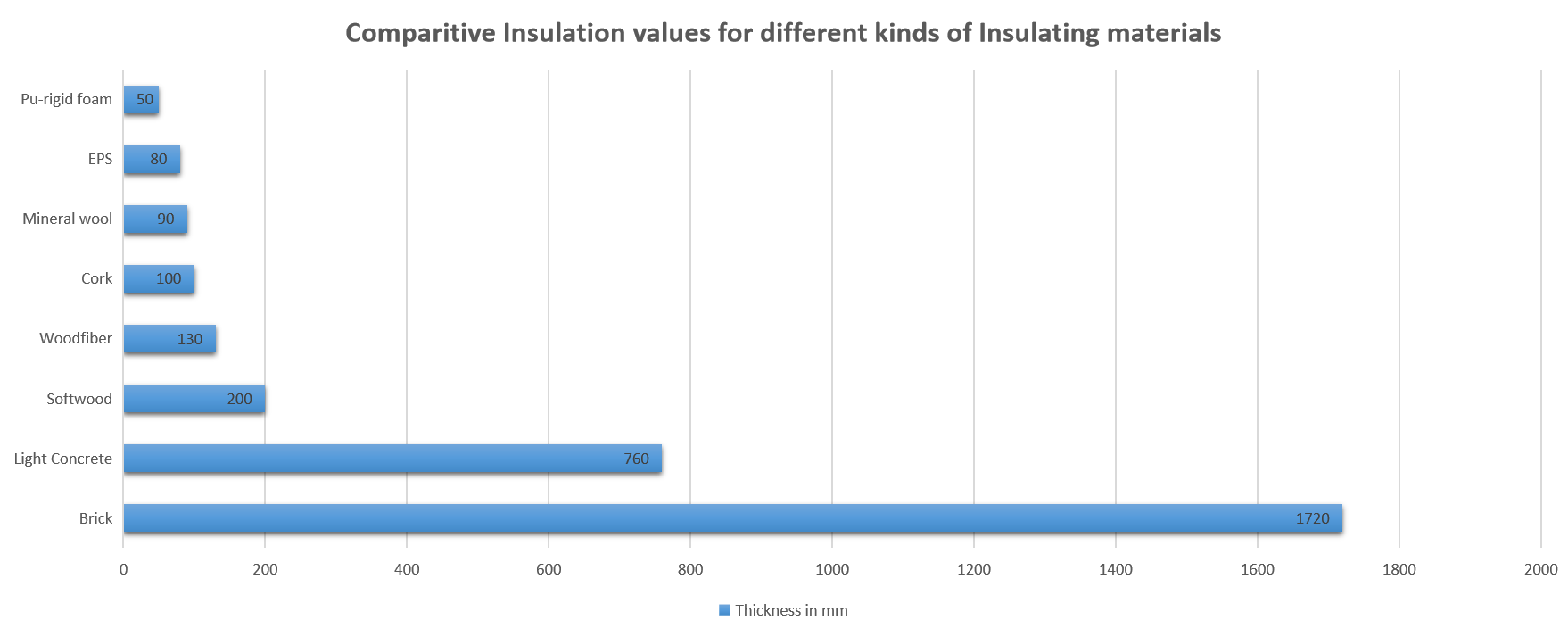

The following Comparison Table shows the thickness of Insulation Materials normally used for Construction/
manufacturing process.
To get Same value of K (thermal insulation coefficient)
| PU Rigid Foam of 50 mm thick | Card board of 130 mm thick |
| Polystryene of 80 mm thick | Wooden board of 280 mm thick |
| Rock wool of 90 mm thick | Light weight concrete of 750 mm thick |
| Cork of 100 mm | Brick wall of 1700 mm thick |
Cold Room Panel
A Clean room requires a Sterilized and safe environment for manufacturing and experimenting with years of expertise RAADEX clean room panels to accommodate the requirements of various clean room applications.
